The steel manufacturing process runs through six consecutive stages, starting at the mine where iron ore is extracted and ending with a plate or bar ready for delivery. Every steel manufacturing stage changes the metal itself rather than moving it along. This guide from Al Nafie Steel follows the order used inside real mills, explaining what happens in each furnace and why the metal leaving a stage differs from the metal that entered it.

The phrase iron and steel making covers two routes inside one steel manufacturing plant. The first produces iron from ore, the second converts that iron into usable steel. Understanding where one ends and the other begins is the key to the whole steel manufacturing process.

What Is the Steel Manufacturing Process?

In any modern mill, the steel manufacturing process follows this order.

1. Mining iron ore and preparing it by crushing, washing and pelletising.
2. Reducing the ore to strip oxygen away from the metal.
3. Melting and refining to reach the required steel chemistry.
4. Continuous casting to turn liquid steel into billets or slabs.
5. Rolling to form sections, plates and bars.
6. Fabrication, treatment and coating before delivery.

Stages one and two produce iron. Stage three is where steel begins. The rest is shaping. Any description of the steel manufacturing process that ignores this order ends up mixing operations that differ completely in temperature, chemistry and cost.

Stage One of the Steel Manufacturing Process, Mining and Preparing Iron Ore

Iron ore in the ground is not pure metal. It is oxide mixed with rock, sand and clay. That is why steel manufacturing does not begin with melting but with preparing the ore so it can enter a furnace at all.

Types of iron ore

The two commercially important ores are hematite and magnetite. Hematite is reddish brown and high in iron, so it needs less preparation before charging, which makes it the preferred feed. Magnetite is black and magnetic, lower in iron as mined but easy to upgrade magnetically. Limonite and siderite see far less industrial use.

Crushing, washing and pelletising

The ore passes through crushers, then through washing and separation that raise iron content and strip out waste rock. In steel manufacturing, excessive fineness is a problem rather than a benefit, because fine powder blocks airflow paths inside a furnace.

Pelletising solves this. The concentrate is mixed with a binder, formed into balls the size of a hazelnut, then fired until they harden. These pellets are what enters the furnace, and their quality sets the efficiency of every steel manufacturing step downstream.

Stage Two of the Steel Manufacturing Process, Reduction and Melting

This is the most important chemical reaction in the whole steel manufacturing process. The oxygen bound to iron in the ore has to be removed, and that removal is called reduction. Two steel manufacturing routes achieve it, and they differ completely.

The blast furnace and coke

A blast furnace is a tall tower that runs for years without shutting down. It is charged from the top with alternating layers of pellets, coke and limestone, while hot air is forced in from below.

Coke serves two purposes. It is the fuel that drives temperature up to roughly 1,500 degrees Celsius, and it is simultaneously the carbon source that pulls oxygen away from the ore. Limestone gathers impurities into a slag layer that floats on the melt and is tapped off.

The output is pig iron, very high in carbon, brittle and unsuitable for structural use as it stands. This matters, because a blast furnace yields an intermediate steel manufacturing material rather than a finished product.

Direct reduction and sponge iron

The second route is direct reduction, and it dominates the steel manufacturing process in Saudi Arabia and the wider Gulf. Here the ore is reduced using natural gas instead of coke, at a temperature below the melting point, so the metal stays solid and never flows.

The output is direct reduced iron, also called sponge iron for the porous structure left behind once oxygen escapes. Its iron content is high and its impurities are low, and it is charged straight into an electric arc furnace. The reason this steel manufacturing route took hold in the Kingdom is natural gas at a competitive cost against imported coke.

Stage Three of the Steel Manufacturing Process, Steelmaking and Steel Refining

Steelmaking begins the moment the goal shifts from separating metal to controlling its chemistry. Steel refining is the heart of this stage, meaning the reduction of carbon and impurities to permitted limits and the precise addition of required elements. In terms of final properties, this is the decisive part of steel manufacturing.

The core idea is simple. Metal arriving from the previous stage is high in carbon, while structural steel needs low carbon. Steel refining is therefore reduction and control, not addition alone.

The electric arc furnace

The electric arc furnace dominates steel manufacturing across the region. Graphite electrodes carry an enormous current that strikes an arc above three thousand degrees, melting the charge quickly.

Its great steel manufacturing advantage is charge flexibility, since it accepts direct reduced iron and scrap in varying proportions depending on availability and price. A single heat typically runs one to three hours depending on furnace size and charge, and those are general ranges.

The basic oxygen furnace

In plants built around a blast furnace, molten metal goes to a basic oxygen furnace instead. Pure oxygen is blown into the melt, burning off excess carbon as gas and dropping carbon content from around four percent to under half a percent.

The reaction is fast and generates its own heat, so cold scrap is added to hold temperature in range. This is the older steel manufacturing route and still the largest by volume worldwide.

Secondary metallurgy and chemistry control

After the furnace, liquid steel moves to a secondary treatment station known as a ladle furnace. This is where genuine steel manufacturing precision enters, as temperature is trimmed, dissolved gas and oxygen are drawn off, and final elements are added.

Adding manganese, silicon, chromium and nickel at this point is what turns plain steel into steel alloys with distinct properties. A small error here surfaces later as a failed tensile test or cracking at the weld, so samples are analysed before casting is permitted.

Stage Four of the Steel Manufacturing Process, Continuous Casting and Billets

Liquid steel is no longer poured into separate moulds. It is cast continuously, poured into a tundish then down through a water-cooled copper mould, so the surface solidifies while the core is still liquid, after which it cools and is cut to length.

This steel manufacturing stage produces three main shapes.

Billets are the most common in regional markets because they feed most construction products. Casting speed and cooling rate affect internal soundness, and steel manufacturing defects introduced here cannot be rolled out later.

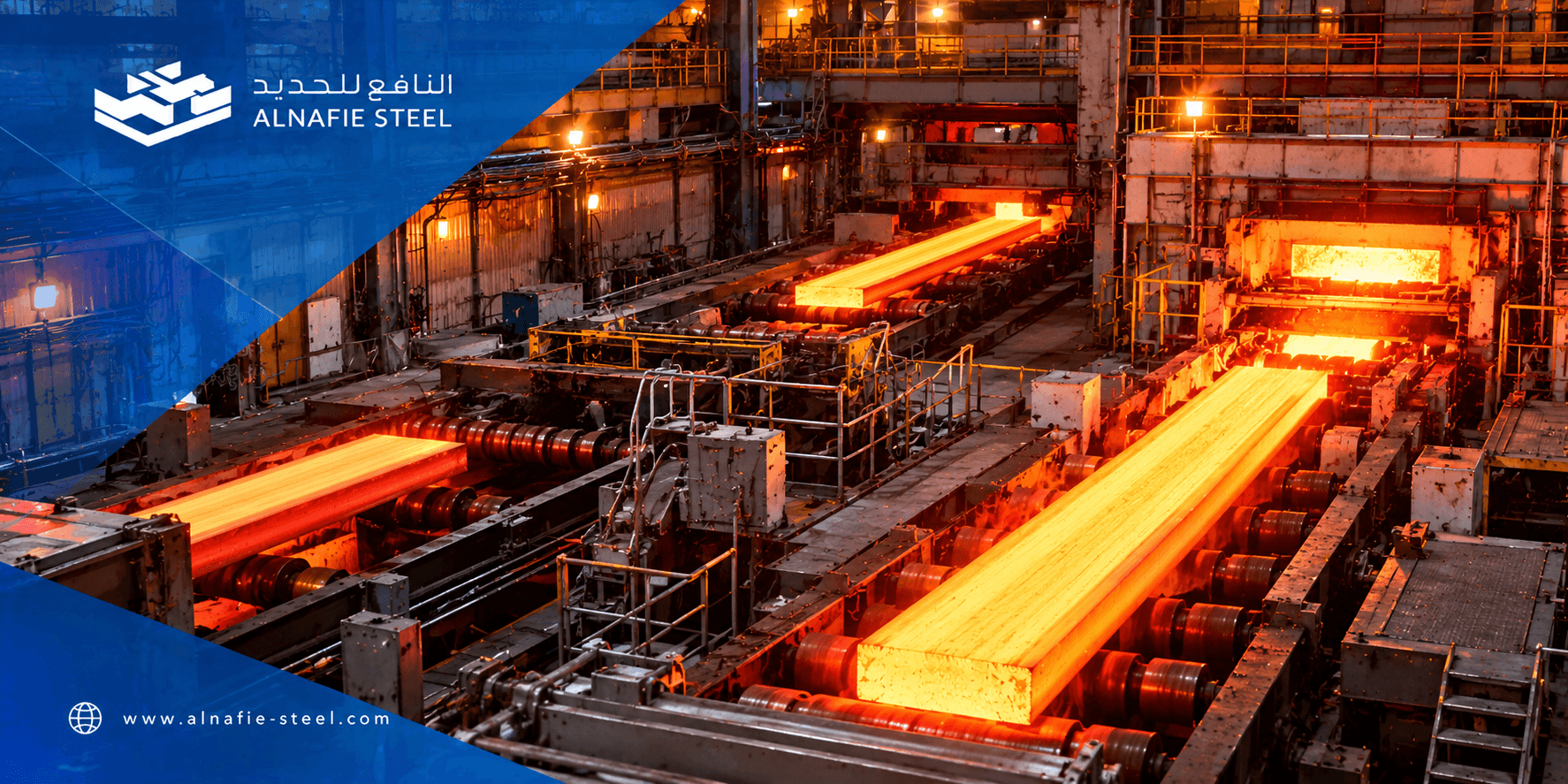

Stage Five of the Steel Manufacturing Process, Steel Rolling and Forming Products

Rolling is where the metal takes its commercial shape. A billet or slab passes between pairs of rolls that squeeze it, lengthen it and reduce its section until it reaches the ordered dimensions. Most steel manufacturing products the market recognises emerge here.

Hot rolling

The billet is heated to roughly 1,200 degrees Celsius and rolled while hot. Heat makes the metal soft enough to form under lower pressure, which is why this route produces thick sections, bars and hot-rolled plates and coils in large sizes.

The trade-off is surface oxidation that leaves a scale layer, plus looser final dimensions from contraction during cooling.

Cold rolling

A hot-rolled coil is cleaned of scale and then rolled again at room temperature. Cold working raises hardness, improves surface finish and holds thickness to tighter tolerance, producing cold-rolled sheet and coils used for visible surfaces and thin gauge work.

Heat treatment

Some products need properties rolling alone cannot deliver, so they pass through heat treatment. Normalising evens out internal structure and relieves rolling stress, while quenching and tempering raise hardness and abrasion resistance.

This treatment is what creates wear resistant plates for heavy equipment and quarries, since chemistry on its own will not produce them.

Coating and galvanizing

The last steel manufacturing step before dispatch is surface protection. Galvanizing covers the surface with zinc that holds off corrosion, and the surface may then be painted at the mill. Galvanized sheet and coils are the product of this step, and they are the most requested option in humid coastal regions.

Stage Six of the Steel Manufacturing Process, Fabrication and Finishing

Rolling delivers standard sizes, while a project needs its own. The final steel manufacturing stage is fabrication, where metal is cut, bent, welded and prepared for the installation site.

The best known outputs here are reinforcement bar, rolled with surface ribs to grip concrete, and beams and channels that carry roofs and bridges.

Pipes follow their own steel manufacturing path. A coil is formed into a tube and welded along its length to give a welded pipe, or a hot solid bar is pierced to give a seamless one, and that is the real distinction between ERW and seamless pipes.

In the workshop, steel welding becomes the governing operation, because localised heat alters the metal structure around the weld zone. All the chemistry control achieved earlier in the steel manufacturing process can be undone by a poor weld.

Is your project starting exactly where this stage ends? Al Nafie Steel supplies the outputs of these stages ready in the sizes you need, cut and prepared to the project specification. Request a quote from our sales team.

How Steel Is Made From Scrap

The question of how steel is made has a second steel manufacturing answer that never touches a mine. A large share of regional output comes from steel scrap rather than ore, a shorter steel manufacturing route that still reaches much the same grades.

Recycling skips a great deal. Scrap is sorted, cleaned and baled, then charged into an electric arc furnace and melted, then passes through the same refining, casting and rolling steps. Steel recycling bypasses the first two steel manufacturing stages entirely.

The gain is substantial. Energy consumed per ton from scrap is clearly lower than from ore, emissions are lower, and the cycle is shorter. Steel tolerates repeated recycling without its properties collapsing, so scrap is a traded commodity with a global price the whole steel manufacturing sector watches.

The binding constraint is sorting quality. Scrap contaminated with other metals such as copper introduces elements that refining cannot remove, limiting the grades that can be produced from it.

The Difference Between Iron and Steel

The two words get used interchangeably even inside steel manufacturing, and the real distinction rests on carbon content.

Pure iron is far too soft for structural work. Push carbon past the upper bound and the metal turns brittle, which is cast iron, poured into moulds rather than rolled. Steel occupies the middle ground that combines strength with formability, which is why practical talk about the steel manufacturing process in construction really means steel.

Alloyed grades

Adding chromium above roughly ten percent forms a protective oxide layer that prevents rust, and that is the basis of stainless steel sheet and plates. Other additions such as molybdenum and vanadium raise hardness and heat resistance, producing the special steel grades that represent the finest chemistry control the steel manufacturing process can achieve.

Steel Manufacturing in Saudi Arabia and Its Mills

The Kingdom is among the largest steel producers in the Middle East, and the reason is an economic fit. Natural gas is available and relatively cheap, which makes direct reduction the logical steel manufacturing route, while domestic demand is enormous given the scale of infrastructure work.

Steel mills in Saudi Arabia sit near coastlines and industrial cities to ease ore imports and product exports. Iron ore does occur in the Kingdom, in mining areas such as Wadi Sawawin, but part of mill demand is still imported, which is normal in steel manufacturing even for countries that mine their own ore.

The current direction, locally and globally, is toward cutting carbon out of the process. Work is under way on hydrogen replacing natural gas as the reducing agent, a shift that would redraw the global steel manufacturing map if it proves commercially viable. This is an openly stated part of the Kingdom’s mining and industry strategy.

What Drives Steel Manufacturing Cost

The final price reflects an entire chain rather than any single stage. The main factors moving steel manufacturing cost are these.

• The global price of iron ore or scrap, the single largest cost line.
• Energy pricing, whether gas for reduction or electricity for the arc furnace.
• The grade ordered, since alloyed grades cost more than plain structural ones.
• The forming route, as cold rolling and galvanizing both add cost above hot rolled.
• Freight and customs, which weigh heavily on a product this dense.

To track where the market sits, see steel price per ton, which breaks down the factors moving local pricing.

From Ore to Your Site

From ore through to finished product, Al Nafie Steel covers the last two links in the steel manufacturing chain, supply and preparation. Explore the product range of a steel supplier in Saudi Arabia with branches in Jeddah, Riyadh and Dammam.
